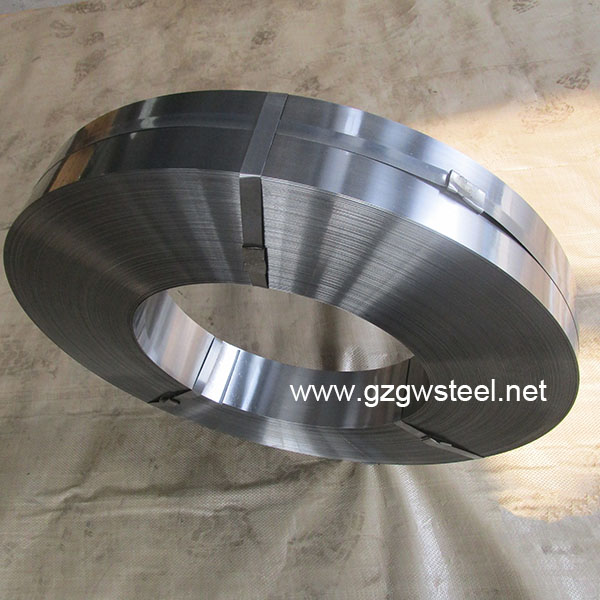

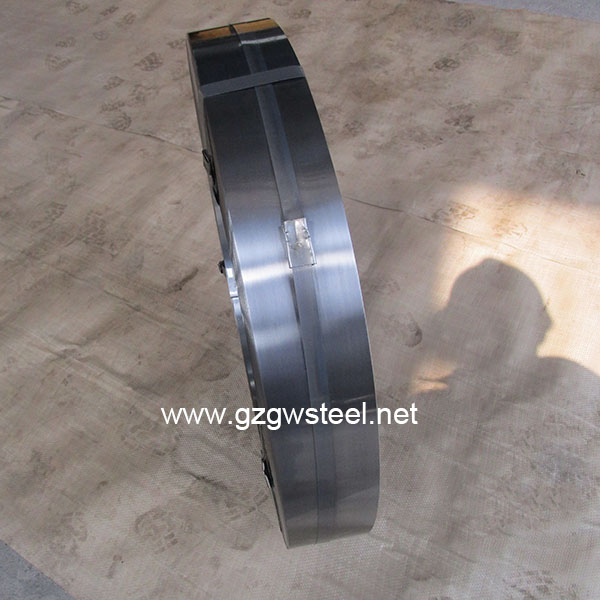

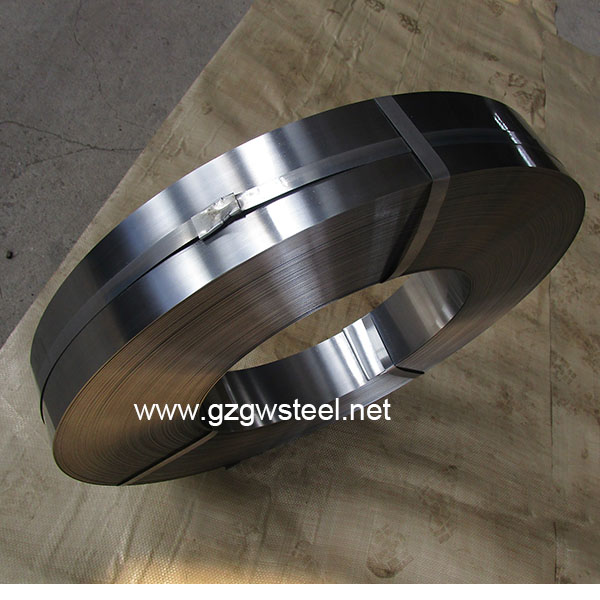

Cold-Rolled Steel Strip For Making Band Saw Blade
Techinique | cold rolled,annealed,hardened and tempered.etc | ||||||
Hardness | 42-48hrc | ||||||
Edge | Rounded,Slitted,squared | ||||||
Application | band saw blade,saw blade,cutting tools.etc | ||||||
package | each coil with light oil and wrapped with plastic film then with anti-rust paper with strong metal pallet |
||||||
The Regular size the clients request | |||||||
Inch | mm | BWG | mm | Size(mm) | |||
5/8 | 16 | 24 | 0.50 | 0.5x16mm | 0.56x16mm | ||
5/8 | 16 | 23 | 0.60 | 0.6x15mm | 0.7x15mm | ||
3/4 | 19 | 23 | 0.60 | 0.6x19mm | 0.56x19mm | ||
1 | 25.4 | 22 | 0.70 | 0.6x20mm | 0.6x25mm | ||
1 | 25.4 | 21 | 0.80 | 0.7x25mm | 0.7x30mm | ||
2 | 50.8 | 20 | 0.90 | 0.7x35mm | 0.8x35mm | ||
3 | 75 | 20 | 0.90 | 0.8x40mm | 0.8x45mm | ||
3 | 75 | 19 | 1.00 | 0.8x50mm | 0.9x50mm | ||
3½ | 90 | 19 | 1.00 | 0.9x60mm | 1.0x35mm | ||
4 | 100 | 19 | 1.00 | 1.0x40mm | 1.0x50mm | ||
4 | 100 | 19 | 1.10 | 1.0x60mm | 1.0x70mm | ||
4 | 100 | 18 | 1.20 | 1.0x80mm | 1.0x90mm | ||
4⅜ | 110 | 19 | 1.10 | 1.0x100mm | 1.1x120mm | ||
4¾ | 120 | 19 | 1.10 | 1.1x35mm | 1.1x40mm | ||
5⅛ | 130 | 19 | 1.07 | 1.1x50mm | 1.1x60mm | ||
5⅛ | 130 | 18 | 1.20 | 1.1x70mm | 1.1x80mm | ||
6 | 150 | 18 | 1.20 | 1.1x90mm | 1.1x00mm | ||
6 | 150 | 18 | 1.30 | 1.1x120mm | 1.1x150mm | ||
6⅛ | 155 | 18 | 1.25 | 1.2x100mm | 1.2x110mm | ||
6⅛ | 155 | 17 | 1.47 | 1.2x120mm | 1.2x125mm | ||
7 | 180 | 18 | 1.25 | 1.2x130mm | 1.2x150mm | ||
7 | 180 | 17 | 1.47 | 1.25x120mm | 1.25x130mm | ||
8 | 205 | 17 | 1.47 | 1.25x150mm | 1.25x180mm | ||
8 | 205 | 16 | 1.65 | 1.47x180mm | 1.47x205mm | ||
9 | 230 | 17 | 1.47 | 1.47x206mm | 1.47x260mm | ||
9 | 230 | 16 | 1.65 | 1.65x260mm | 2.2x260mm |
